A7 10 Wheeler 6X4 HOWO Dump Truck For Mine Site With Euro 4 Engine

China YUN DA HUI IMP-EXP LIMITED certification
China YUN DA HUI IMP-EXP LIMITED certification
I'm Online Chat Now

A7 10 Wheeler 6X4 HOWO Dump Truck For Mine Site With Euro 4 Engine

A7 10 Wheeler 6X4 HOWO Dump Truck For Mine Site With Euro 4 Engine
A7 10 Wheeler 6X4 HOWO Dump Truck For Mine Site With Euro 4 Engine A7 10 Wheeler 6X4 HOWO Dump Truck For Mine Site With Euro 4 Engine A7 10 Wheeler 6X4 HOWO Dump Truck For Mine Site With Euro 4 Engine

Large Image :  A7 10 Wheeler 6X4 HOWO Dump Truck For Mine Site With Euro 4 Engine

Product Details:
Place of Origin: China
Brand Name: HOWO A7
Certification: ISO 9001/SGS/BV/CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 Unit Load Into Flat Rack Or By Roro Ship
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 1000 Units Per Month
Detailed Product Description
Overall Size: 8145*2496*3386 (mm) Cabin: A7-W With One Bed
Model: ZZ3257N3847P1 Engine: Euro 4, 380HP / 420HP
Emissions Control: SCR Fuel System: Electrical Injection
High Light:

howo 6x4 dump truck

,

howo a7 dump truck

HOWO A7 10 Wheeler 6X4 Dump Truck For Mine Site With Euro 4 Engine



The HOWO A7 dump truck is equipped with an open-box bed, which is hinged at the rear and equipped with hydraulic rams to lift the front, allowing the material in the bed to be deposited ("dumped") on the ground behind the truck at the site of delivery. HOWO A7 dump truck, known also as a dumper truck or tipper truck is used for transporting loose material (such as sand, gravel, or demolition waste) for construction.



I. Feature
1. HOWO Dump Truck have been made with the most advanced materials and configuration that can meet different needs of customers.

2. Stronger power and Chassis bearing capacity.

3. Comfortable and convenient in the Internal configuration of cabin.

4. Better heat dissipation,keep longer lifespan.



II. Service

Technical support

We have professional engineers who are proficient in the knowledge of trucks and construction machines. They have rich experience and can solve all the problems that customers face. They can both teach theoretical knowledge in China and guide the operation at the construction sites of foreign countries.

Foreign maintenance sites& Workshops

We set up maintenance sites and workshops in some countries where we have a lot of customers. There are all kinds of maintenance tools and spare parts. The staff can provide quick and satisfactory services for customers.

Ocean shipping

We cooperate with world famous shipping companies and freight forwarders which have rich experience in handling shipping and can safely send the products to the destination ports on time.



III. Specification

Type HOWO A7  6X4 380HP DUMP TRUCK
Drive type 6x4;LHD
Model HOWO A7
Engine 380HP/ 420HP, Euro IV
Transmission HW19710,10 forward speed, 2 reverse speed ,manual
Front axles HF9
Rear axles HC16,speed ratio:5.73
Steering ZF brand
Tires 12.00R20, with one spare tire
Whole truck dimensions(mm) 8145*2496*3386
Cargo box size(mm) 5600*2300*1500
Volume 20 CBM
Hydraulic Lift of Carriage Front / Middle lift
Steel thickness of Carriage Floor: 8mm, Side:6mm
Cabin A7-W ,standard cab with one bed
Fuel tank 300L
Accessory Air-conditioner and safety belts
Color Optional

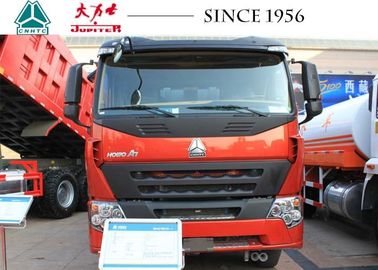

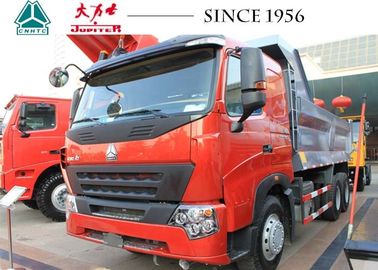

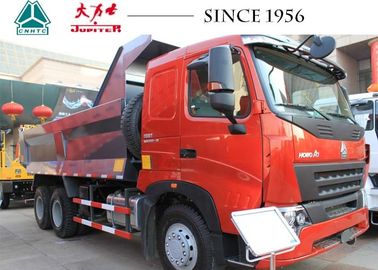

IV. Photo

HOWO DUMP TRUCK 10 WHEELER FOR Philippines Specification
