Product Details:
Payment & Shipping Terms:
|
| Other Name: | Skeletal Trailer | Materials: | Carbon Steel Q345B |
|---|---|---|---|
| Payload: | 45 Tons | Use: | Transport Container |
| Color: | Optional | Dimension: | 40 FT |
| High Light: | gooseneck container trailer,container chassis trailer |
||
I.Application
Use for carry 20 FT container ,40 FT container and tank container.
II.Feature
1.Main frame of skeleton trailer is made of 16mm high-tensile steel,the stucture is reasonable,have superior carrying capacity and no permanet deformation.
2.The axle,tyre and other accessories are the well-known brand like Fuwa,Bpw,Jost,Triangle brand which supplied by the domestic and foreign professional manufacturers.
3.The skeleton trailer has a steady performace,long life and excellent antiseptic performace on painting.
4.It’s optional to use foreign and domestic high-tensile steel and customized sectional materials, to reduce tare weight and promote transport efficiency.
III.Quality guarantee
1.More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
2.Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3.Spare parts support services.
4.Able to custom-built design as your requirment,ensure to meet your local road regulation.
IV.Specification

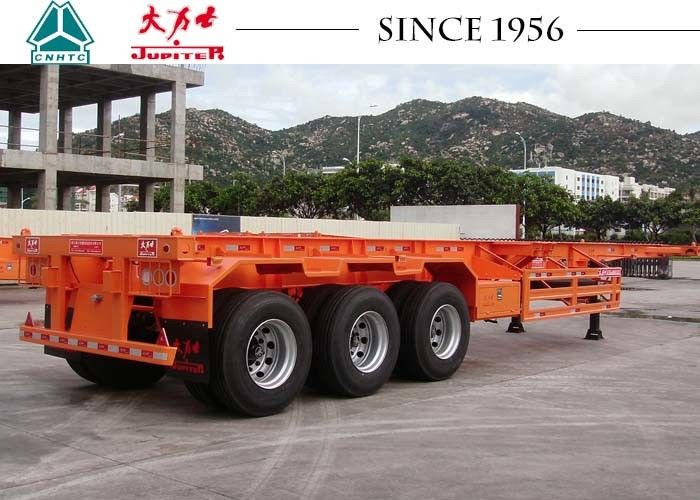

| Style | 40FT 3-axle skeletal semi-trailer |
| Dimension(L*W*H): | 12480*2480*1570 (mm) |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Payload(kgs): | 45000 |
| Tare weight(kgs): | 6000 |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” C200T |
| Tire size | 12R22.5 (13sets) |
| Rim size | 9.0*22.5 (13sets) |
| Axle | FUWA brand 13ton |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Air Chamber | MBA T30/30 |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Suspension: | Fuwa steel suspension with 9pcs of leafs spring |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: | S.A.2.5 standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting |
V.Detailed Photos
