Product Details:
Payment & Shipping Terms:
|
| Material: | Carbon Steel Q345B | Capacity: | 30 To 50 M³ |
|---|---|---|---|
| Residual Rate: | Residual Rate : 《0.25% | Type: | V Shaped / W Shaped |
| Rated Pressure: | 0.2Mpa | Engine: | Huafeng 4100 |
| High Light: | cement powder tankers,bulk tanker carriers |
||
Bulk cement tanker trailer is suitable for carrying bulk cement, coal ash, lime power, mineral power, fuly ash and other power material with the partice diameter no more than 0.1mm,the bulk cement tank trailer is mainly used in cement factories, cement warhouses and large construction sites.The bulk cement tanker produce by us will help you reduce the loss rate of cement power material and improve the loading and unloading efficiency.
I. Feature
Material
The main frames using high-strength steel materials, have a light dead-weight, ensure its resistance to twisting forces, shock and bump, meet load requirements on different kinds of road.
Design
Use Latest flow structure design.The load capacity is bigger and have a lower center of gravity.
Peformance
Adopt the domestic and foreign famous brand accessories and parts,such as Weichai engine, Suk air compressor,BPW Axles,Jost Landing Gear, ensure the durabitily of bulk cement trailer.Help you save costs on operation and maintain.
Unloading Speed
The pipeline system is fitted with reasonable auxiliary blower and anti-wear device to realize somoother unloading process and faster unloading speed
II. Quality guarantee
1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
3. Spare parts support services.
4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
III.Specification
| Style | 3 Axles Bulker Cement Tanker Trailer |
| Dimension(L*W*H) | 11500*2500*3700 (mm) |
| Max. payload | 60000 (kgs)) |
| Volume | 30CBM to 50CBM |
| Tare weight | 9700 (kgs) |
| Kingpin | JOST 3.5” bolt-in |
| Landing gear | JOST 19” |
| Tire size | 12R22.5 (13sets) |
| Rim size | 9.00*22.5 (13sets) |
| Axle | BPW brand ,3 axles,13 tons |
| Susupension | Fuwa steel suspension with 9pcs of leafs spring |
| Brake system | Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Diesel Engine: | Shandong WeiChai 4100(40KW)(2000r/min) |
| Air compression: | SuZhou WBF-10/2 (10M3/min) (0.2MPA) |
| Painting | Zinc-rich & Polyurethane painting |

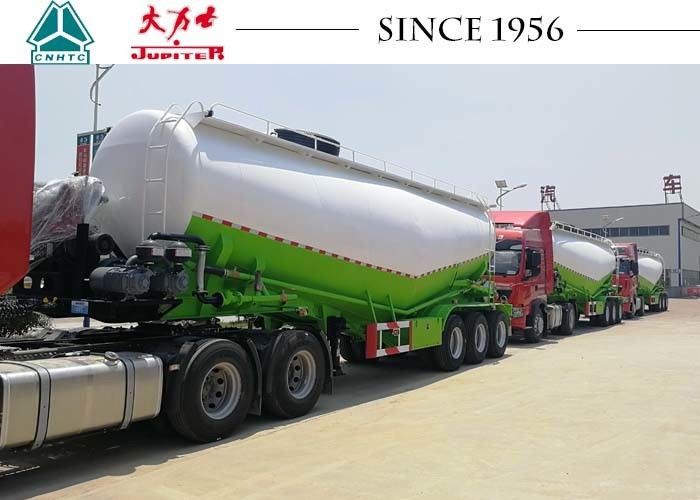

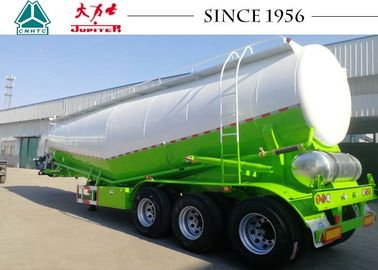

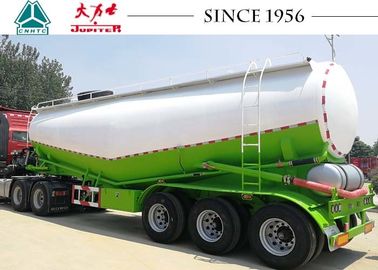

IV.Detailed Photo
