Heavy Duty Low bed Trailer With Bogie Suspension For Equipment Transport

China YUN DA HUI IMP-EXP LIMITED certification
China YUN DA HUI IMP-EXP LIMITED certification
I'm Online Chat Now

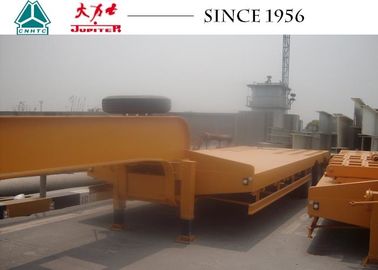

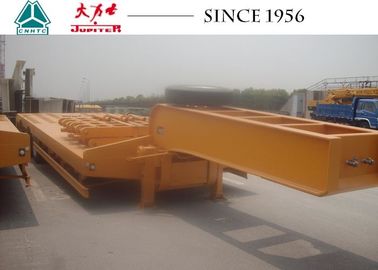

Heavy Duty Low bed Trailer With Bogie Suspension For Equipment Transport

Heavy Duty Low bed Trailer With Bogie Suspension For Equipment Transport
Heavy Duty Low bed Trailer With Bogie Suspension For Equipment Transport Heavy Duty Low bed Trailer With Bogie Suspension For Equipment Transport Heavy Duty Low bed Trailer With Bogie Suspension For Equipment Transport

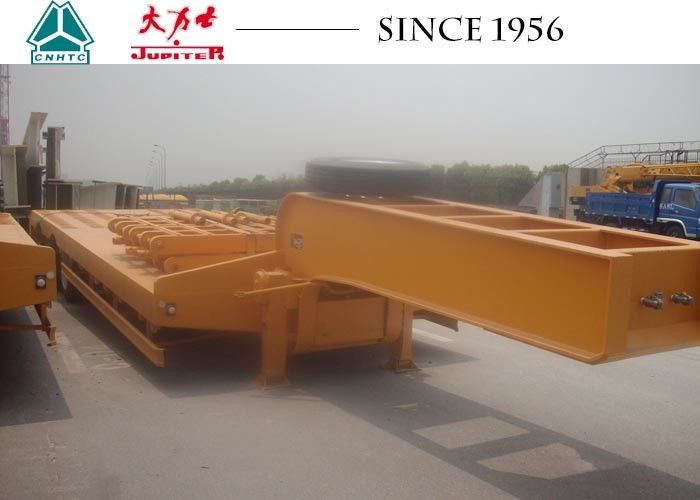

Large Image :  Heavy Duty Low bed Trailer With Bogie Suspension For Equipment Transport

Product Details:
Place of Origin: China
Brand Name: JUPITER
Certification: BV/CCC/CE/DOT/SGS
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: No Packing
Delivery Time: 25 Working Days
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Loading Ramp: Spring Ramp Type: Flat Deck
Payload: 40 Tons Axles: Fuwa Axles 16 Tons
Suspension: Bogie Suspension Other Name: Lowboy Trailer
High Light:

low bed truck trailer

,

lowboy flatbed trailer

Heavy Duty Lowbed Trailer With Bogie Suspension For Equipment Transport



Low bed semi-trailer (also call low boy semi-trailer ) is usually used to transport heavy truck (e.g., Tractor truck, Buses and special vehicles, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery( such as excavators, bulldozers, loaders, paver, cranes etc.) and other heavy cargos.



I. Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.



II. Feature:

1. Use Torsion-resistant side beam and main Beam with "I" high strengh steel. more durable than normal trailer steel , ensure driving stability and handle bed roads.

2. Manganese plate butt welding, This design that ensure the ramp support the heavy duty marchine

3. The structure of low bed trailers can be handled the tough conditions of abnormal load transport. It has a heavy duty design and a lower gravity center, which make the transport safer.

4. The lowbed trailer can be custom-built as your requirements. The payload of low bed trailers from 30 tons to 200 tons. It can be designed to a straight beam type(flat cargo deck) and Concave Beam type(tire exposed)with hydraulic and spring ramps.





III. Specification

  2 Axle Low bed Semi-trailer
Feature: Carry heavy equipment and abnormal cargo
Dimension(L*W*H): 12000*2800*2500 (Custom-built )
Main frame: Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model: SS9400DTP
No. of axle: 2
Payload: 40,000 kgs
Kingpin: The world-famous JOST brand bolt-in/welded type 3.5”/2”
Landing gear: JOST brand two-speed manual operation 19”
Tire size: 11R22.5 or optional
Rim size: 9.00*22.5
Axle: FUWA-16T
Suspension Bogie suspension
Brake system: Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks 12(for 1x20GP,2X20GP,1X40HQ)
Painting: S.A.2.5standard sandblasting; Two coat of anti-corrosion prime; one coat of finish painting
Accessory: One tool box
