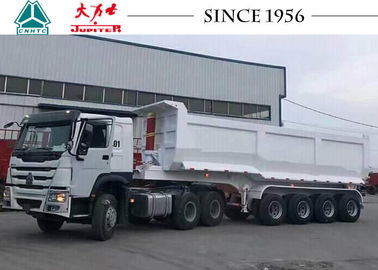

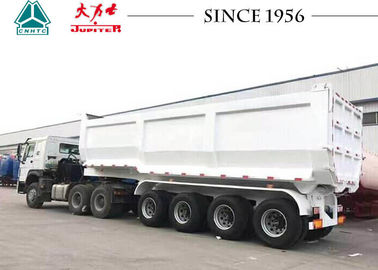

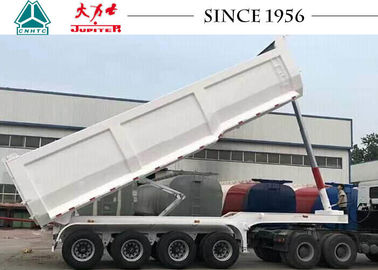

35 CBM U Shape Heavy Duty Tipper Trailer 4 Axle 50 Tons For Mining

China XIAMEN SUNSKY VEHICLE CO.,LTD certification
China XIAMEN SUNSKY VEHICLE CO.,LTD certification
I'm Online Chat Now

35 CBM U Shape Heavy Duty Tipper Trailer 4 Axle 50 Tons For Mining

35 CBM U Shape Heavy Duty Tipper Trailer 4 Axle 50 Tons For Mining
35 CBM U Shape Heavy Duty Tipper Trailer 4 Axle 50 Tons For Mining 35 CBM U Shape Heavy Duty Tipper Trailer 4 Axle 50 Tons For Mining 35 CBM U Shape Heavy Duty Tipper Trailer 4 Axle 50 Tons For Mining

Large Image :  35 CBM U Shape Heavy Duty Tipper Trailer 4 Axle 50 Tons For Mining

Product Details:
Place of Origin: China
Brand Name: SUNSKY
Certification: ISO 9001,CCC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 1 Unit Load Into Flat Rack or By Ro Ro Ship/Bulk Ship or CKD/SKD
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 300 Units Per Month
Detailed Product Description
Capacity: 35CBM Payload: 50 Tons
Axle: 4 Axle,fuwa Brand Color: White
Hydraulic System: Hyva Brand Brake System: Re-6 Emergency Valve
High Light:

tipper truck trailer

,

end tipper trailer

35 CBM U Shape Tipper trailer, 4 Axle 50 Tons Dump Trailer For Mining



Introduction of 35 cbm tipper trailer



The chassis of SUNSKY dump trailers is designed in accordance with the international transportation standards also available .They are welded between 120/12 mm bottom or top flat steel and 5 mm hub plate with high resistance to allow obtain the highest efficiency under all road and weather conditions.



Tipper body is manufactured from durable steel plate against 450 Hb wears and impacts.



Adjustable springs on end cover are connected on the upper side, they can be opened and closed from bottom.



SUNSKY Trailer manufactures high quality tipper trailer from China to World. In our tipper trailer we use HYVA Brand hydraulic cylinder which is well know from all tipper users. With this trailer you can carry construction materials and mines. According to your demand we can change the technical specification. SUNSKY Trailer can produce tipper trailer 400 pcs per month.



Specification of 35 cbm tipper trailer



Style 35CBM 4 Axle Tipper Trailer
Dimension(L*W*H)mm: 11500*2500*3500
Inner dimension(L*W*H)mm: 10000*2350*1700
The material of body BS700MC high tensile 4mm
Payload(kgs): 50,000
Volume(CBM) 35 CBM
Tare weight(kgs): 12000
Kingpin JOST3.5”bolt-in
Landing gear JOST19”
Tire and rim 315/80R22.5 and 385/80R22.5
Axle Fuwa Brand 13 tons,4 Axle
Suspension Spring suspension plus airbag with lifting on first axle
Brake system Re-6 emergency valve
Air Chamber MBA T30/30
Hydraulic system: HYVA brand





Quality guarantee of 4 axle tipper trailer



1. Two years free warranty terms for the I beam, three to six month free warranty terms for the Axles, suspension etc.

2. Spare parts support services. We can supply the parts to you whenever you need them.

3. Able to custom-built design the trailers as your special requirement ensure to meet your local road regulation.
