8x4 HOWO Tank Truck For Carrying Water

I'm Online Chat Now

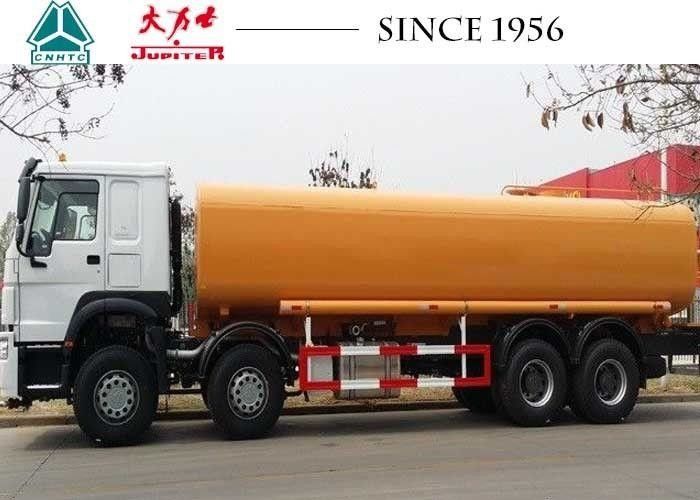

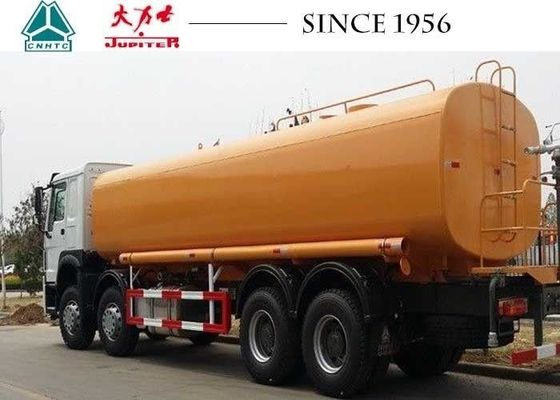

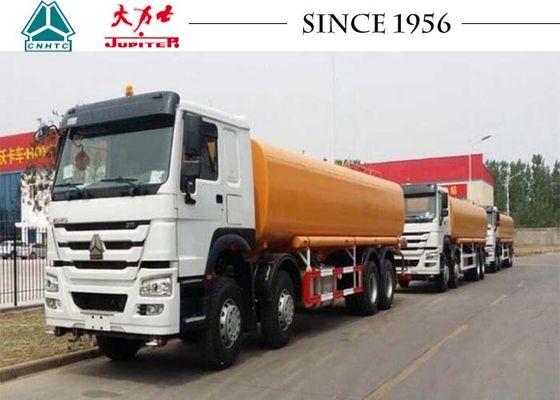

8x4 HOWO Tank Truck For Carrying Water

8x4 HOWO Tank Truck For Carrying Water
8x4 HOWO Tank Truck For Carrying Water 8x4 HOWO Tank Truck For Carrying Water 8x4 HOWO Tank Truck For Carrying Water

Large Image :  8x4 HOWO Tank Truck For Carrying Water

Product Details:
Place of Origin: FUJIAN,CHINA
Brand Name: HOWO
Certification: BV/CCC/CE/DOT/SGS
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: Negotiable
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
High Light:



8x4 HOWO Tank Truck


Carrying Water HOWO Tank Truck


How do water tank trailers maintain the technical operating requirements for brakes?


1. When using the water tank trailer, the free travel of the brake pedal shall meet the factory requirements of the vehicle. The brake system shall not leak air, and the pipeline shall not rub against other parts. Air storage tanks shall be equipped with drainage and pressure limiting devices.When stopping, make sure that the braking pressure is not less than 0.4mpa for 6 consecutive times. All parts of the hand brake mechanism should be complete,free from cracks and deformation, firmly connected, flexible, accurate and reliable.

2. The hydraulic brake tank trailer of the fog shall not leak oil or enter air. Step down the pedal and hold it for 1 minute, do not move the pedal to the floor slowly. In the process of water tank trailer operation, there should be no self-braking phenomenon. The driving brake is effective and reliable in the process of driving, and there is no deviation.

3. Brake main pump should be flexible and reliable, without leakage. Under the action of external forces, the master cylinder oil should be able to generate enough pressure to be used as a power source for the brake chamber. The position of the handbrake lever should be correct and reliable. Parking brake operators should be installed in an appropriate position. The joystick must have a certain reserve stroke. In general, a greater braking effect should be achieved within 3/4 of the entire stroke of the joystick. Ratchet brake should be less than 2/3 to produce greater braking efficiency.The locking device is sensitive and reliable. The pedal brake mechanism should be complete and locked, the pedal stroke should be no more than 20mm, and the board surface should have anti-skid measures.


The water tank trailers are suitable for transporting water and liquid cargoes, can be used in road maintenance and construction industry.




Style HOWO 8x4 Water TANK TRUCK
Material Carbon Steel/ Aluminum / Stainless steel
Model ZZ1317N4647W
Drive Type 8X4, 12 Wheeler,LHD /RHD
Engine 371HP, EURO II /Euro IV
Capacity 30,000 Liters (Customizable)
Compartment 1 to 8
Front Axles HF7(drum)
Rear Axles ST16
Transmission HW19710,10 speed
Steering ZF brand
Tires 295/80R22.5
Whole truck dimensions(mm) 11245x2500x3400
Cabin HW76
Different ratio 4.42
Others With Pump in and pump out
Accessory Air-conditioner and safety belts
