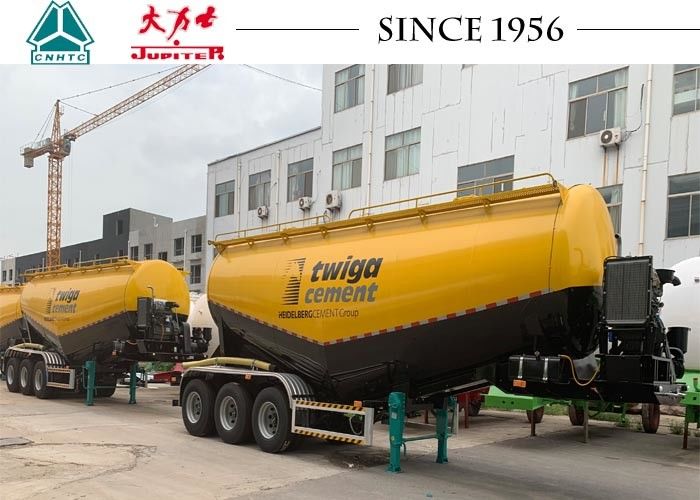

Tri Axle 40M3 Carbon Steel Q345B Dry Bulk Cement Trailers

China XIAMEN SUNSKY VEHICLE CO.,LTD certification
China XIAMEN SUNSKY VEHICLE CO.,LTD certification
I'm Online Chat Now

Tri Axle 40M3 Carbon Steel Q345B Dry Bulk Cement Trailers

Tri Axle 40M3 Carbon Steel Q345B Dry Bulk Cement Trailers
Tri Axle 40M3 Carbon Steel Q345B Dry Bulk Cement Trailers

Large Image :  Tri Axle 40M3 Carbon Steel Q345B Dry Bulk Cement Trailers

Product Details:
Place of Origin: CHINA
Brand Name: SUNSKY
Certification: BV/CCC/CE/DOT/SGS
Payment & Shipping Terms:
Minimum Order Quantity: 2 units
Price: Negotiable
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
Material:: Carbon Steel Q345B Capacity:: 40 CBM
Payload:: 50 Tons Color:: Optional
High Light:

40M3 Dry Bulk Cement Trailers

,

Q345B Dry Bulk Cement Trailers

,

Tri Axle Cement Tank Trailer



3 Axle 40CBM Dry Bulk Cement Tank Trailer



I. Abstract

Widely praised as the industry’s most robust carbon steel dry bulk trailers, HOWO Trailer offers vessel integrity, low tare weights, high efficiency, long wear, easy clean out. HOWO Trailer craftsmanship throughout and keep your operation running at maximum efficiency. HOWO Trailer dry-bulk trailers have all the qualities desired in an efficient solution, no matter if you need the essential ruggedness of an oil sander or asphalt transport, the cement transport or the pristine cleanliness required for the transport of critical food grade products. It’s HOWO Trailer craftsmanship, combined with the exceptional durability, thoughtful engineering and high payloads customers have come to expect from every premium HOWO Trailer product—peace of mind that frees you up to focus on the most important project of all—building your business.



II. Specification

Style 3 Axles Bulk Cement Tank Trailer
Dimension(L*W*H) 11500*2500*3700 (mm)
Max. payload 50000 (kgs))
Volume 40CBM
Tare weight 9700 (kgs)
Kingpin JOST 3.5” bolt-in
Landing gear JOST 19”
Tire size 12R22.5 (13sets)
Rim size 9.00*22.5 (13sets)
Axle BPW brand ,3 axles,13 tons
Susupension Fuwa steel suspension with 9pcs of leafs spring
Brake system Dual line with WABCO brand Re-6 emergency relay valve, MBA brand T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Diesel Engine: Shandong WeiChai 4100(40KW)(2000r/min)
Air compression: SuZhou WBF-10/2 (10M3/min) (0.2MPA)
Painting Zinc-rich & Polyurethane painting



III.Quality guarantee

1. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.

2. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.

3. Spare parts support services.

4. Able to custom-built design as your requirment,ensure to meet your local road regulation.
