| Length: | 7.5 Meters | Dimension: | 7500*2500*800mm |
|---|---|---|---|
| No. Of Axle: | 3 | Payload(kgs): | 30000 |
| Axle: | Genuine BPW Brand 13T,3 Axles | Suspension: | 3-axles Leaf Spring Suspension |
| Highlight: | 3 Axle Drawbar Trailer,SUNSKY 3 Axle Drawbar Trailer,1x20GP Flatbed Trailer |
||
Drawbar trailer is the most common trailer for transport general cargo.It is an important tool of logistics transportation, mainly used for short-distance transportation of goods in industry, warehouse, logistics center, wharf and other yard areas. This type of flatbed drawbar trailer is a drawbar trailer with flat floor structure and fence board at the loading part.

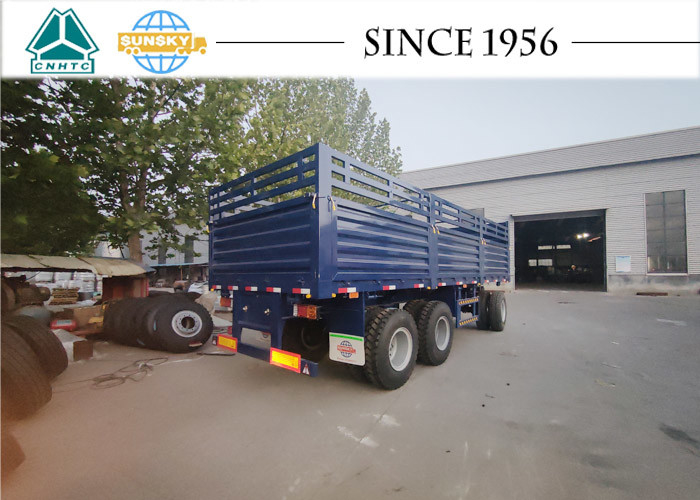

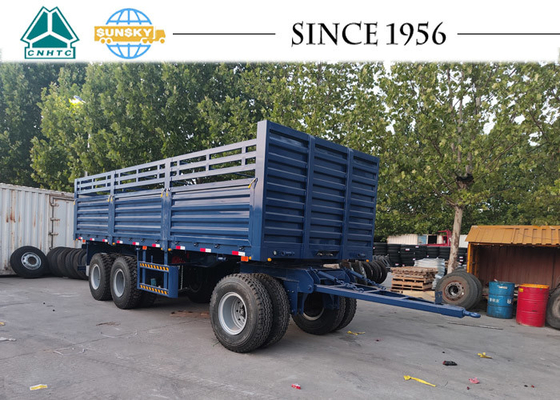

This is the fourth batches of 3 axle drawbar trailer that exporting to Djibouti, Djibouti customers have already recognized our products and have been repurchasing trailers from SUNSKY. We try our best to provide our customers with the best products and services.
Specification
| 7.5 meters full trailer | |
| Feature: | Carry Bulk cargo |
| Dimension(L*W*H): | 7500*2500*800mm |
| Front wall | 800mm side panel + 600mm extra mesh |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| No. of axle: | 3 |
| Model: | XSS9380FT |
| Payload(kgs): | 30000 |
| Tare weight: | 7000KGS |
| Turntable: | 20 ton |
| Tire size: | Triangle brand 12.00R20 (12 Sets) |
| Rim size: | 9.00*20 (12 Sets) |
| Axle: | Genuine BPW brand 13T,3 Axles |
| Suspension: | 3-axles leaf spring suspension |
| Brake system: | Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank |
| Electric system: | 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 4(for 1x20GP) |
| Painting: | Two coat of anti-corrosion prime; one coat of finish painting, Color optional |
| Accessory: | One tool box |
| Color: | Dark blue |
Quality guarantee
1. Able to custom-built design as your requirment,ensure to meet your local road regulation.
2. More than 30 years experiences in trailer and truck industrial,exported to more than 30 countries in Africa,Southeast Asia.
3. Two years free warranty terms for the I beam,three to six month free warranty terms for the Axles,suspension etc.
4. Spare parts support services.
