Product Details:
Payment & Shipping Terms:
|
| Material: | Q345B Steel | Dimension: | Approx. 13000*2600*2600mm |
|---|---|---|---|
| Axle: | 13 Tons | Tires: | 12R22.5 (13sets) |
| Condition: | Brand New | Container Locks: | 12(for 1X20GP,2X20GP,1X40HQ) |
3 Axle Dropside Semi Trailer 40FT Side Wall Semi Trailer Grain Semi Trailer
In October, an old customer in Tanzania ordered two more three-axle fence semi-trailers from SUNSKY. I bought a three-axle flatbed semi-trailer before. Because the customer thought the quality was good and SUNSKY’s after-sales service was also very good, he decided to continue buying from us. This is a Heavy Duty 40FT 3 Axle Dropside Semi Trailer. Our factory is preparing for inspection to ensure that the Storehouse Semi Trailer received by the customer is of high quality.
Because we are old customers and purchase a large amount from SUNSKY, we have given certain preferential policies and the customers are very satisfied. For customers who purchase SUNSKY semi-trailers in bulk, we will have certain discounts. Please be sure to contact us if necessary.
3-Axle dropside Semi-trailer parameters
| 13 meter Tri axle Dropside semi trailer | |
| Feature: | Carry 1X20FT ,1X40FT ,or 2X20FT container Carry bulk cargo |
| Height of side wall | 1000 mm |
| Main frame: |
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Model: | XSS9380TP |
| No. of axle: | 3 |
| Payload(kgs): | 40000 |
| Tare weight(kgs): | Approx. 8800 |
| Kingpin: | Bolt-in type 3.5 ” or 2” |
| Landing gear: | Two-speed manual operation 19 ” |
| Rim size: | 9.00*22.5(13 sets) |
| Suspension | Airbag suspension with first axle lifting |
| Brake system: | Dual line with Re- 6 emergency relay valve, T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7 -pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: |
Two coat of anti-corrosion prime; one coat of finish painting,color blue |
| Others: | One toolbox; Two spare wheel carrier |

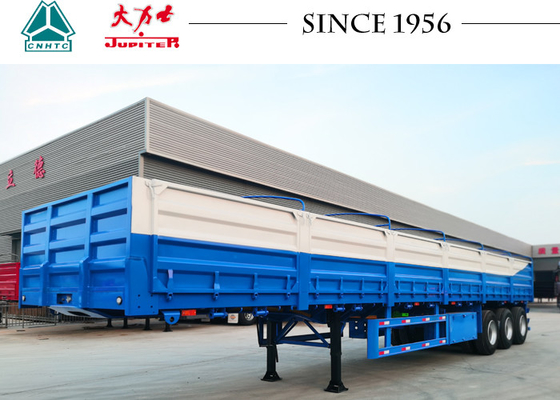

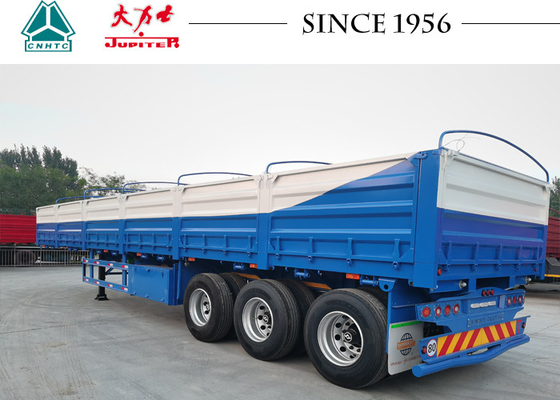

40FT 3-Axle dropside Semi-trailer picture
3 Axle Dropside Semi Trailer Design:
1. The overall vehicle shape is 13000*2600*2730 (flat height);
2. This vehicle has 12 sets of container locks and can carry one 40ft, two 20ft or one 20ft standard container;
3. This car has Fuhua 13T axles, external brake drums, 385/65R22.5 tubeless tires, air suspension, and front axle lift;
4. A tool box on the left: a corner frame in front of the tool box:
5. The upper wing plate of the longitudinal beam is 14/Q345, the lower wing plate is 16/Q345, the web plate is 8mm/Q345, and the height is 500mm; the side beam is 16# channel steel, commonly known as 10# channel steel, and the bottom plate has a 3.0mm pattern;
Box board frame 40*60*3.0mm square tube, corrugated 3.0mm, column 8mm bent parts;
6. The tarpaulin poles and horizontal pulls are only at the uprights, and there are no tarpaulin poles on the box board;
If you are also interested in our 40FT side wall Semi Trailer, the load capacity depends on your customized needs, customers engaged in transportation and logistics are welcome to purchase from sunsky.
