XIAMEN SUNSKY VEHICLE CO.,LTD
Home ProductsFlatbed Trailer

3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer

China XIAMEN SUNSKY VEHICLE CO.,LTD certification
China XIAMEN SUNSKY VEHICLE CO.,LTD certification
I'm Online Chat Now

3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer

3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer
3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer 3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer

Large Image :  3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer

Product Details:
Place of Origin: CHINA
Brand Name: SUNSKY
Certification: BV/CCC/CE/DOT/SGS
Model Number: SS9380TJZP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 2 Units Load Into 40/45 FT Container
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
No. Of Axle: 3 Payload(kgs): 50000
Tare Weight(kgs): 7200 Kingpin: Bolt-in Type 2”
Tire Size: 315/80R22.5 Double Tyres Rim Size: 9.00*22.5( 13 Sets)

3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer


40 Foot Flatbed Trailer Introduction
Flatbed semi-trailer is a kind of transportation tool for transporting large apparatus container or bulk cargo loading.


40ft Container Flat Bed Trailer Advantage
1.Long life LED lighting system,Durable and Attractive rear bumper design
2.Heavy duty design suspension hanger.Main beam thickness 14 /8 /16mm, Durable chassis
3.Heavy load American type spring suspension,Heavy loading 19 Inch Two speed landing gear
4.Strong Side fence to protect the trailerLong lifespan and low maintain cost Axles


Flatbed Trailers For Sale Parameter
Feature:Carry 1X20FT ,1X40FT ,or 2X20FT container
Dimension(L*W*H):12420*2480* 1570mm
Main frame:Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process
Model:SS9380TJZP
No. of axle:3
Payload(kgs):50000
Tare weight(kgs):7200
Kingpin:Bolt-in type 3.5” or 2”
Landing gear:Two-speed manual operation 19”
Axle:3 Axle, 13 Tons
SuspensionSpring suspension with 8pcs of leaf spring
Brake system:Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank
Electric system:One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks12(for 1x20GP,2X20GP, 1X40HQ)
Painting:Two coat of anti-corrosion prime; one coat of finish painting
Accessory:One tool box; one set of standard tool

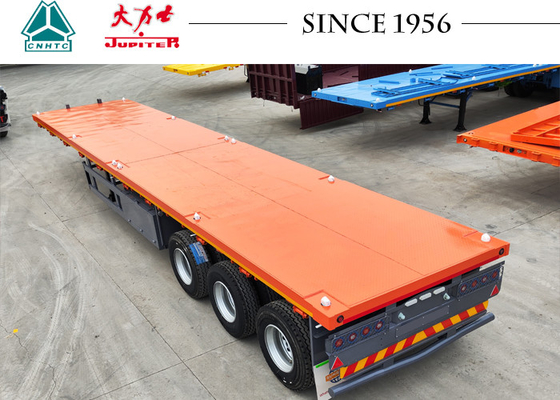

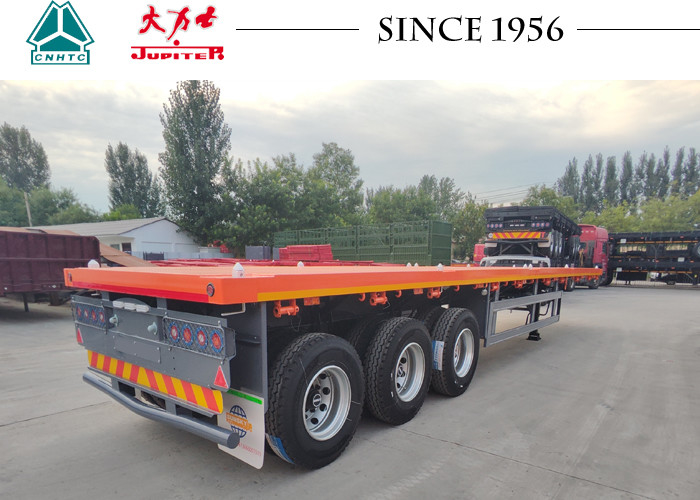

Flat Bed Semi Trailer IMAGE
3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer 03 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer 13 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer 23 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer 3


The details that need to be paid attention to when buying a flatbed trailer
When buying a flatbed truck, paying attention to the following details is essential to ensure a successful purchase:
Purpose and Requirements: Determine the specific purpose of the flatbed truck and identify your requirements. Consider factors such as the maximum payload capacity, bed length and width, towing capacity, and any specific features or configurations needed to meet your transportation needs.
New or Used: Decide whether you want to buy a new or used flatbed truck. Evaluate the advantages and disadvantages of each option, including the cost, warranty, maintenance history, and overall condition. Consider your budget and the intended usage of the truck to make an informed decision.
Vehicle History and Inspection: If considering a used flatbed truck, thoroughly inspect the vehicle's history and condition. Request maintenance records, vehicle history reports, and consider hiring a professional mechanic or inspector to assess the truck's mechanical components, frame, suspension, brakes, and other critical areas. Look for any signs of wear, damage, or potential issues that may impact its performance or safety.
Manufacturer and Reputation: Research different manufacturers and choose a reputable and reliable brand known for producing high-quality flatbed trucks. Look for reviews, customer feedback, and ratings to assess the reputation and reliability of the manufacturer and the specific model you're interested in.
Payload and Weight Capacity: Ensure that the flatbed truck has an adequate payload and weight capacity to handle the loads you intend to transport. Consider factors such as the Gross Vehicle Weight Rating (GVWR), axle ratings, and any legal restrictions imposed by local regulations.
Engine and Powertrain: Evaluate the performance and power of the truck's engine and powertrain. Consider factors such as horsepower.

If you are interested in our 3 - Axle Flatbed Trailer 40 Foot Flatbed Trailer 40ft Container Flat Bed Trailer or you have any other questions about semi-trailer, please contact us.
