Large Image :  Container Flatbed Trailer 3-Axle Flatbed Trailer 40ft Flatbed Trailer

Product Details:
Place of Origin: CHINA
Brand Name: SUNSKY
Certification: BV/CCC/CE/DOT/SGS
Model Number: SS9380TJZP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: Negotiable
Packaging Details: 2 Units Load Into 40/45 FT Container
Delivery Time: 30 Working Days
Payment Terms: L/C, T/T
Supply Ability: 500 Units Per Month
Detailed Product Description
No. Of Axle: 3 Payload(kgs): 40000
Tare Weight(kgs): 7200 Kingpin: Bolt-in Type 2”
Tire Size: 315/80R22.5 Double Tyres Rim Size: 9.00*22.5( 13 Sets)

Container Flatbed Trailer 3-Axle Flatbed Trailer 40ft Flatbed Trailer



Flatbed logistics semi-trailers play a vital role in the transportation and logistics industry, providing a versatile solution for hauling oversized, heavy, or irregularly shaped cargo.



Container Flatbed Trailer parameter

Feature: Carry containers and bulk cargo
Dimension(L*W*H): Approx.13000*2500*(1350-1400)mm,Actual height according to design
Main frame: I beam 500*6mm Top flange 14*140mm,bottom flange 16*140mm
Model: XSS9380TP
Landing gear: Two-speed manual operation 19”
Axle: SUNSKY brand,3 Axle,13 tons
Suspension: Spring suspension with 10pcs of leaf spring
Brake system: Dual line with Wabco Re-6 emergency relay valve,T30/30 air chamber, 46L air tank
Electric system: One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable
Container locks: 12
Painting: Two coat of anti-corrosion prime; one coat of finish painting, Color Optional

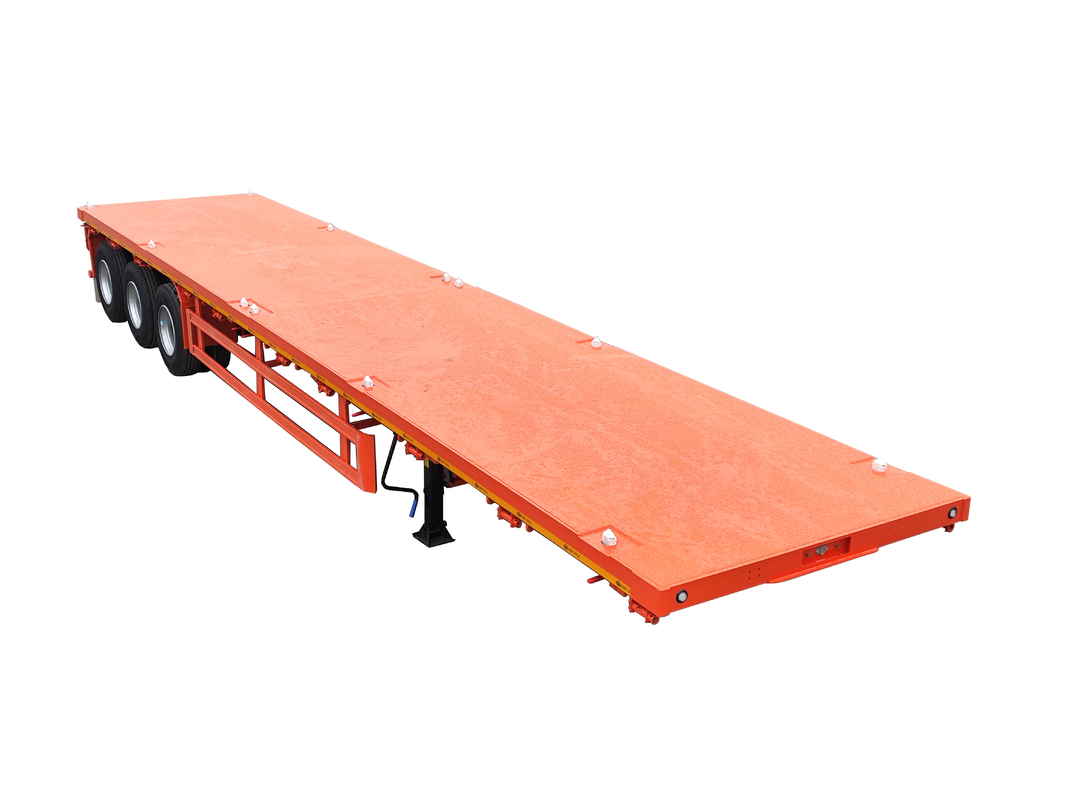

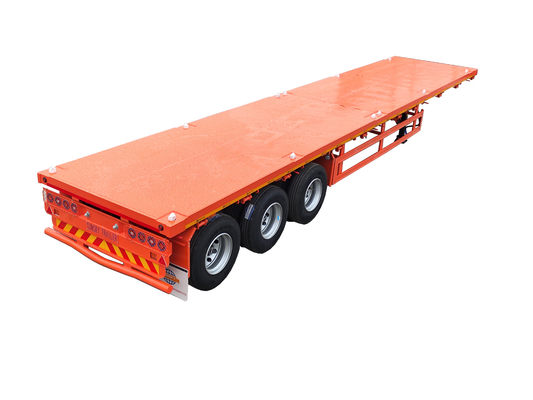

3-Axle Flatbed Trailer picture

Container Flatbed Trailer 3-Axle Flatbed Trailer 40ft Flatbed Trailer 0Container Flatbed Trailer 3-Axle Flatbed Trailer 40ft Flatbed Trailer 1Container Flatbed Trailer 3-Axle Flatbed Trailer 40ft Flatbed Trailer 2



basic semi-trailer maintenance
1. Periodic inspection: Examine the trailer thoroughly, paying close attention to the coupling, deck, suspension, and frame. Keep an eye out for damage indicators like rust, cracks, or loose parts.
2. Cleaning: Make sure to routinely clean the flat deck and get rid of any dirt, debris, or caustic materials. This keeps the trailer's structural integrity intact and helps prevent rust. Give close attention to the region surrounding the joints and fasteners.
3. Lubrication: To minimize friction and guarantee smooth performance, lubricate moving elements like hinges, locks, and suspension components.
4. Electrical system: Inspect the trailer's wiring, connectors, and lights to make sure everything is operating as it should. To preserve road safety and compliance, replace or repair any defective parts as soon as possible.
5. Brake maintenance: Make sure the brake system—including the brake pads, drums, and cables—is checked regularly. Examine the wear, make any necessary brake adjustments, and replace any worn parts. For safe operation, maintaining appropriate braking performance is crucial.





If you are interested in our Container Flatbed Trailer 3-axle Flatbed Trailer 40ft Flatbed Trailer, please contact us!
