Product Details:
Payment & Shipping Terms:
|
| Material: | Q345B Steel | Dimension: | Approx.13000*2600*2700mm |
|---|---|---|---|
| Axle: | 13 Tons | Tires: | 385/65R22.5 |
| Condition: | Brand New | Container Locks: | 12(for 1X20GP,2X20GP,1X40HQ) |
Grain Semi Trailer Drop Side Semi Trailer 30 Ton Trailer With Sideboard
This is a customer from Zambia who contacted our Business Manager, Jason Lin, through our regular customer introduction. We understand that the customer is a transporter, and the purchase of Drop Deck Trailer is mainly to transport bulk cargo and containers and grains.
The drop deck trailer ordered by the customer this time is 12.5 meters long with 1200mm side wall height with grain windows, with a load of 40ton, yost legs, and 315 tires with FUWA brand leaf spring suspension. The whole car adopts international well-known brands, double guarantee of quality and safety.
Dropside Semi-trailer parameters
| 13 meter Tri axle Dropside semi trailer | |
| Feature: | Carry 1X20FT ,1X40FT ,or 2X20FT container Carry bulk cargo |
| Height of side wall | 1200 mm |
| Main frame: |
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Model: | XSS9380TP |
| No. of axle: | 3 |
| Payload(kgs): | 40000 |
| Tare weight(kgs): | Approx. 8800 |
| Kingpin: | Bolt-in type 3.5 ” or 2” |
| Landing gear: | Two-speed manual operation 19 ” |
| Suspension | Airbag suspension with first axle lifting |
| Brake system: | Dual line with Re- 6 emergency relay valve, T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7 -pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP,1X40HQ) |
| Painting: |
Two coat of anti-corrosion prime; one coat of finish painting,color blue |
| Others: | One toolbox; Two spare wheel carrier |

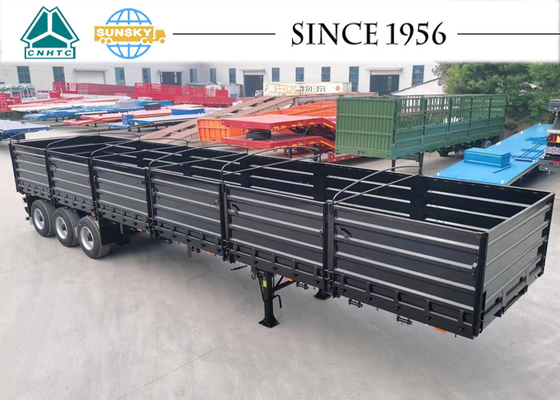

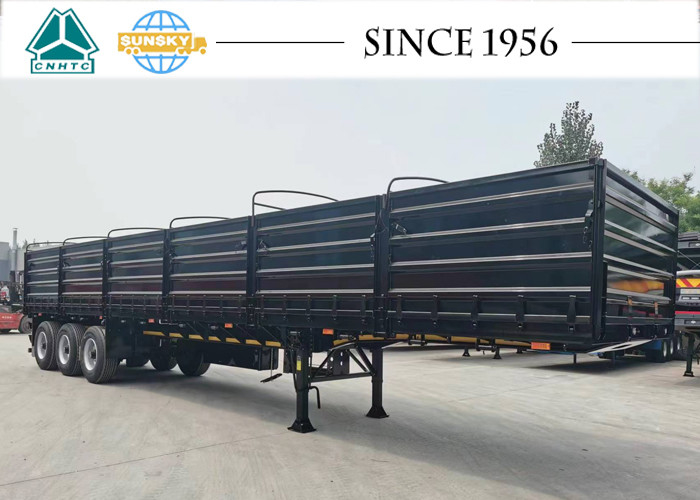

40FT dropside Semi-trailer picture
6. The tarpaulin poles and horizontal pulls are only at the uprights, and there are no tarpaulin poles on the box board;
If you are also interested in our Grain Semi Trailer Drop Side Semi Trailer 30 Ton Trailer With Sideboard, the load capacity depends on your customized needs, customers engaged in transportation and logistics are welcome to purchase from sunsky.
