Product Details:
Payment & Shipping Terms:
|
| No. Of Axle: | 3 | Payload(kgs): | 50000 |
|---|---|---|---|
| Tare Weight(kgs): | 7200 | Kingpin: | Bolt-in Type 2” |
| Tire Size: | 315/80R22.5 | Rim Size: | 9.00*22.5( 13 Sets) |

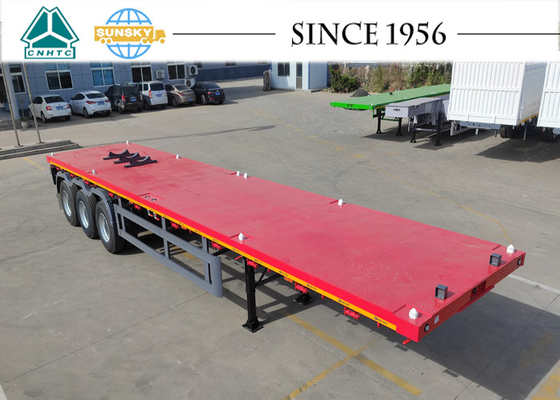

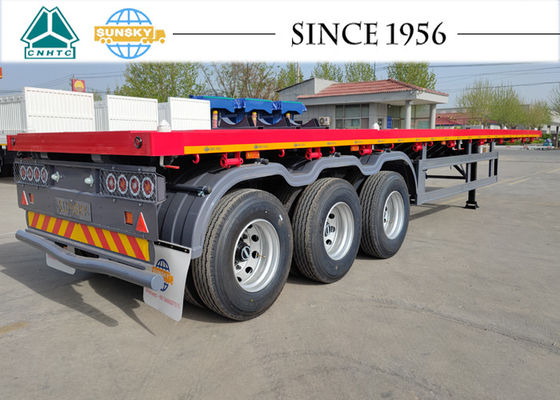

40 Foot Flatbed Trailer Introduction
Tri Axle Flatbed Trailer 40Ft is capable of transporting various types of cargo, including heavy machinery, equipment, and standard containers. This makes them well-suited for meeting the diverse transportation requirements in Africa. Given the relatively weak infrastructure in Africa, flatbed semi-trailers offer excellent maneuverability that can help overcome the challenges posed by poor road conditions.
40ft Container Flat Bed Trailer Advantage
1.Long life LED lighting system,Durable and Attractive rear bumper design
2.Heavy duty design suspension hanger.Main beam thickness 14 /8 /16mm, Durable chassis
3.Heavy load American type spring suspension,Heavy loading 19 Inch Two speed landing gear
4.Strong Side fence to protect the trailerLong lifespan and low maintain cost Axles
| Feature: | Carry 1X20FT ,1X40FT ,or 2X20FT container |
| Dimension(L*W*H): | 12420*2480*1570mm |
| Main frame: | Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Model: | SS9380TJZP |
| No. of axle: | 3 |
| Payload(kgs): | 50000 |
| Tare weight(kgs): | 7200 |
| Kingpin: | Bolt-in type 3.5” or 2” |
| Landing gear: | Two-speed manual operation 19” |
| Axle: | 3 Axle, 13 Tons |
| Suspension | Air suspension with lifting |
| Brake system: | Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog light; one set of 6-pin standard cable |
| Container locks | 12(for 1x20GP,2X20GP, 1X40HQ) |
| Painting: | Two coat of anti-corrosion prime; one coat of finish painting |
| Accessory: | One tool box; one set of standard tool |
