| Material: | Q345B Steel | Dimension: | Approx.13000*2600*2700mm |
|---|---|---|---|
| Axle: | 13 Tons | Tires: | 315/80R22.5 |
| Condition: | Brand New | Container Locks: | 12(for 1X20GP,2X20GP,1X40HQ) |
Side Curtain Trailer Drop Side Tipping Trailer 40Ft Curtain Side Semi-Trailer
The Curtain Side Semi Trailer, also known as a canvas side curtain semi-trailer, is a highly efficient vehicle widely used in the logistics and transportation industry. It is characterized by sliding canvas side curtains on both sides, which make loading and unloading of goods easier while ensuring good protection and fixation. This design not only enhances loading and unloading efficiency but can also accommodate various transportation requirements.
Dropside Semi-trailer parameters
| 13 meter Curtain Side Semi-Trailer | |
| Feature: | Carry bulk cargo |
| side wall | 400 mm |
| Main frame: |
Heavy duty and extra durability design; Opting for high tensible low carbon alloy Q345B steel; I beam welded by automotive arc-submerge process |
| Model: | XSS9380TP |
| No. of axle: | 3 |
| Payload(kgs): | 40000 |
| Brake system: | Dual line with Re-6 emergency relay valve, T30/30 air chamber, 46L air tank, WABCO brand |
| Electric system: | One unit of 24V 7-pin ISO standard socket; with brake light, turn light, reverse light, side light, reflector, fog |

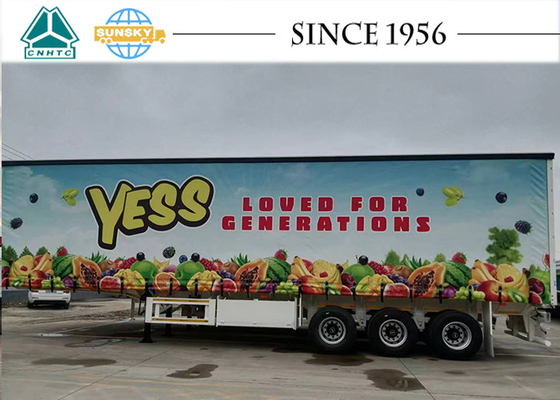

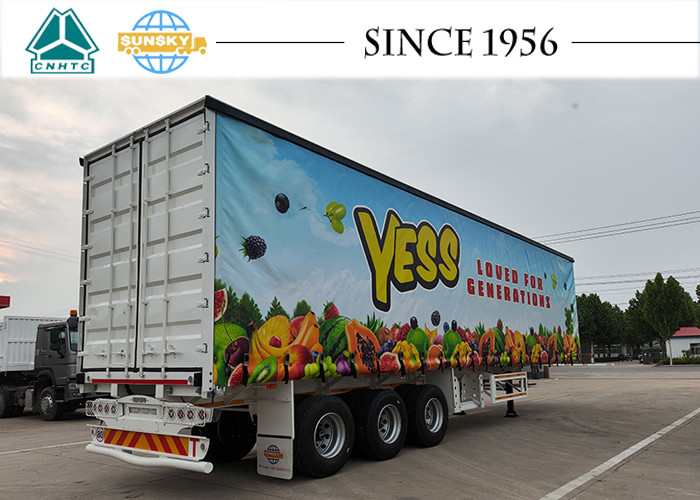

Side Curtain Trailer picture
If you are also interested in our Side Curtain Trailer Drop Side Tipping Trailer 40Ft Curtain Side Semi-Trailer, the load capacity depends on your customized needs, customers engaged in transportation and logistics are welcome to purchase from sunsky.
